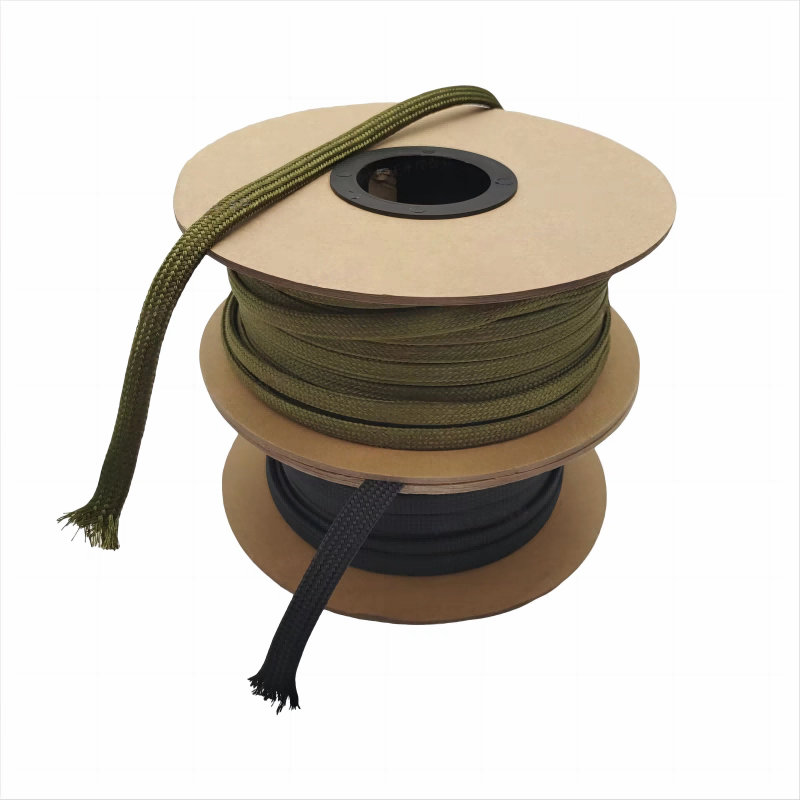

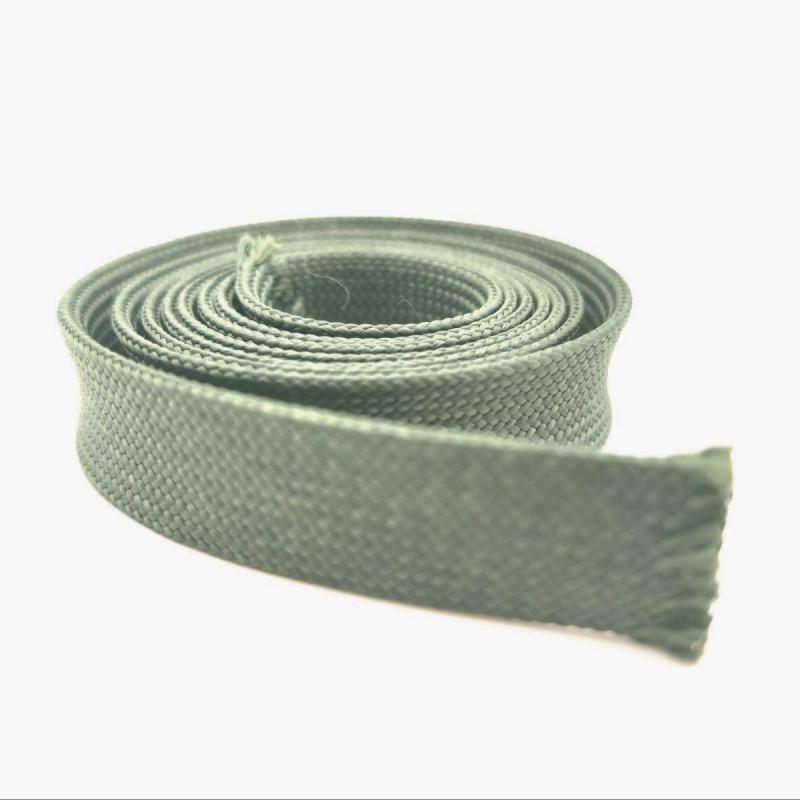

Meta-Aramid Braided Sleeving
This Heat-shrink Tube offers excellent insulation, waterproofing, and abrasion resistance. Easy to use and evenly shrinking, it’s ideal for wire protection and sealing in industrial and electronic applications.
- EKO
- China
- 15-20 days
- 3000000 meters per month
- Information
- Video
Meta-Aramid Braided Sleeving – Heat & Flame Resistant Cable Protection (-55°C to 240°C)
Material:Meta-aramid
Working temperature: -55℃-+240℃
Flammability: UL94V-0
Operating range: -50℃+240℃ (short-term up to 300°C)

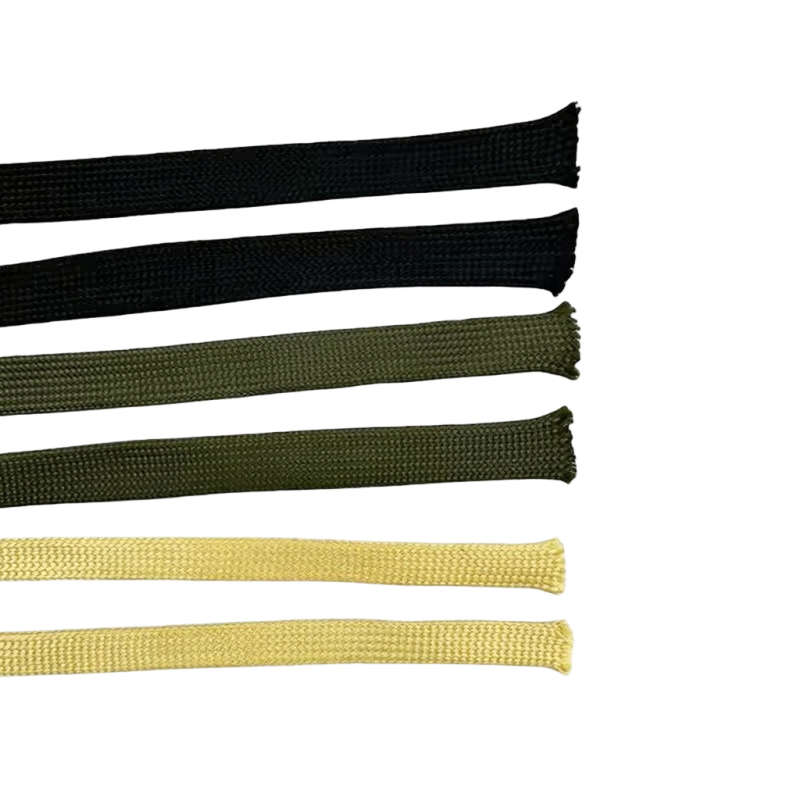

Color:Army green, black
Key Features
| Feature | Description | ||
| Material | 100% Meta-Aramid fiber | ||
| Continuous: -50°C to +240°C, Peak: up to 300°C | ||

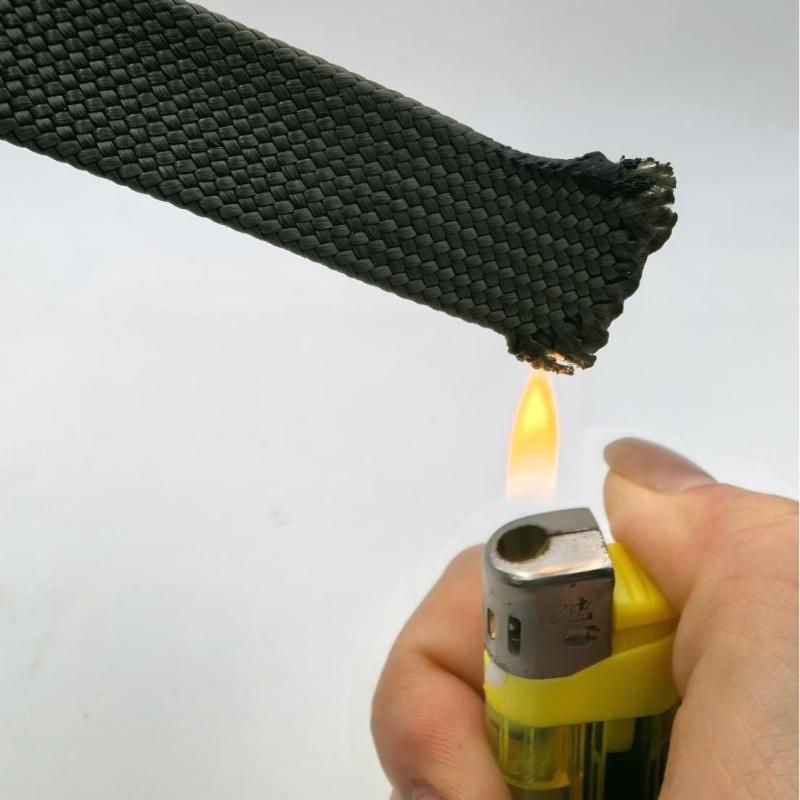

| Flame Retardancy | Self-extinguishing, complies with UL94 V-0 | ||
| Electrical Insulation | Non-conductive, high dielectric strength | ||

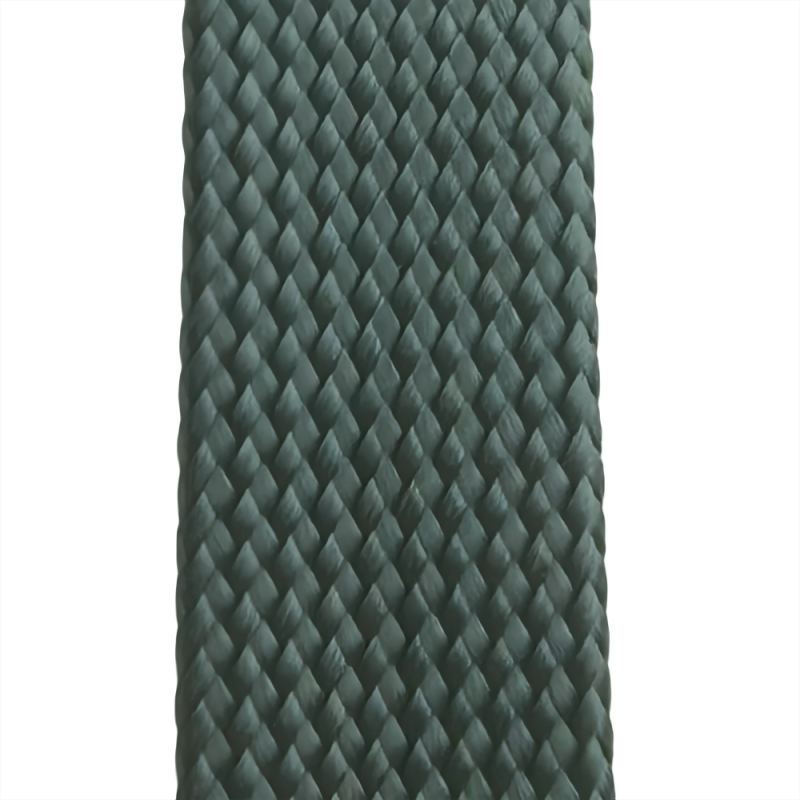

| Abrasion Resistance | Durable woven structure, resists fraying | ||
| Chemical Resistance | Resists oil, solvent, acid, and alkali exposure | ||

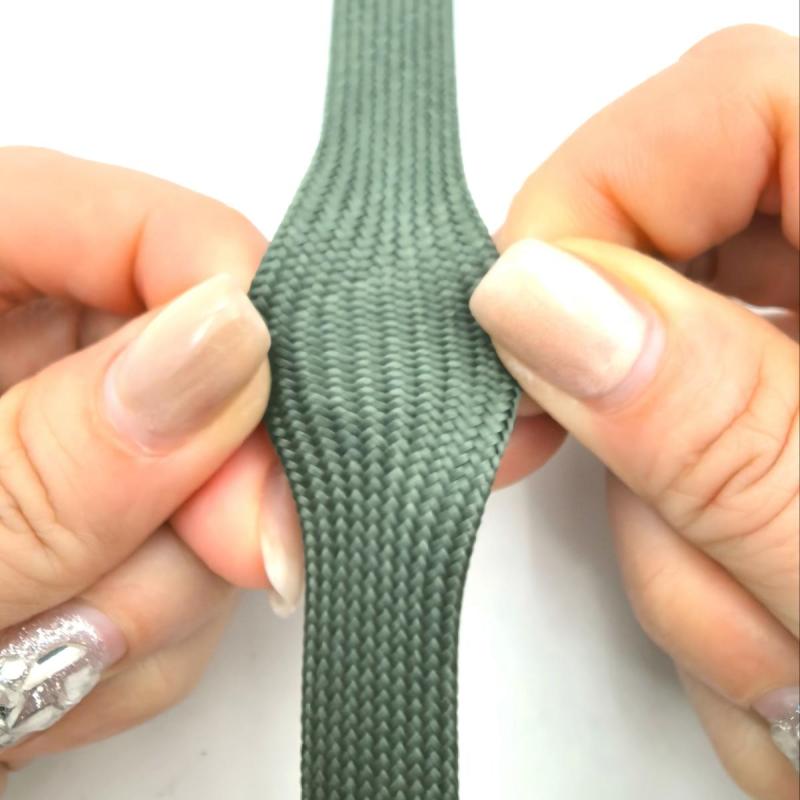

| Flexibility & Lightweight | Easy to install on irregular or moving harnesses | ||
| Low Smoke & Non-toxic | Ideal for enclosed and passenger-related applications |

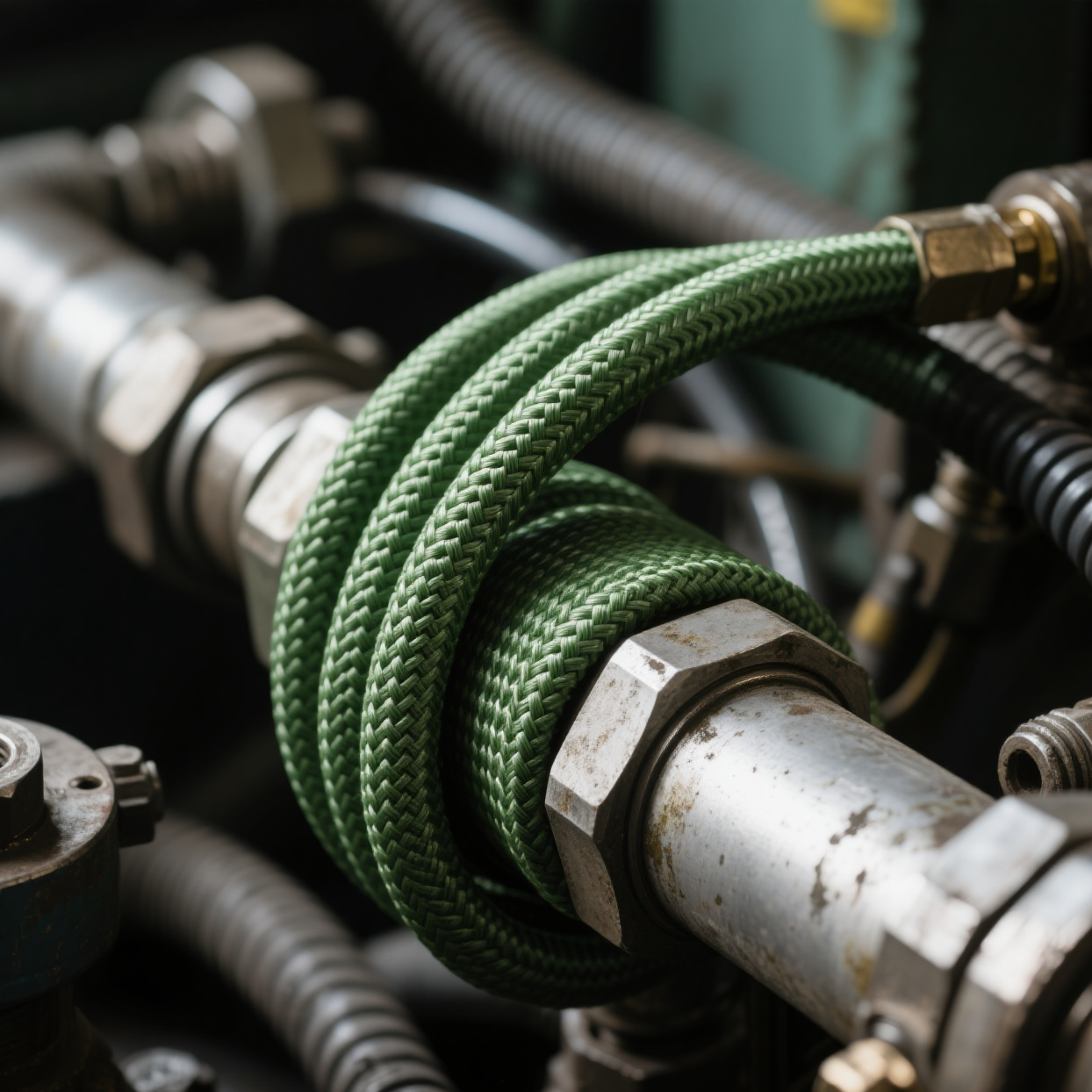

Applications
Aerospace – Protection of wire harnesses near engines and avionics

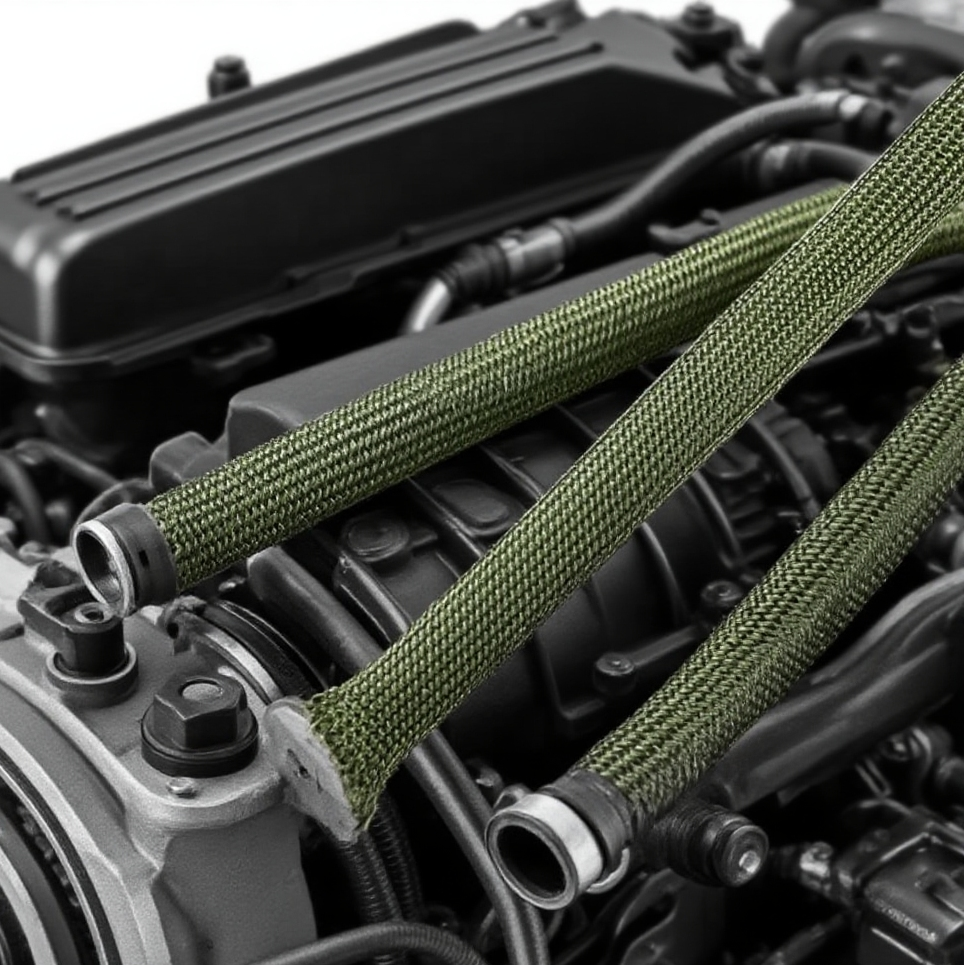

Automotive – Ideal for under-hood wiring and high-temperature engine bay areas
Rail Transit – Cable management in trains, metros, and electrical control cabinets

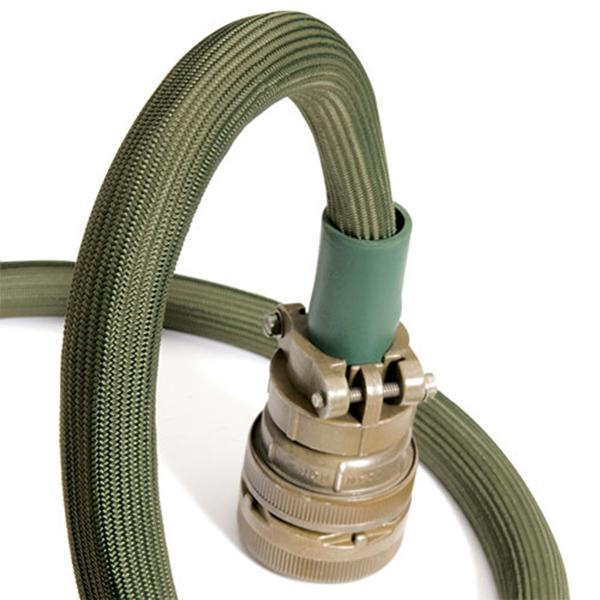

Military – High-reliability cable protection in extreme environments
Electronics – Insulation for high-temperature equipment and circuit boards
Industrial Equipment – Cable bundling near furnaces, turbines, and motors
Telecommunications – Fiber and data cable protection where fire safety is critical
Specification
Part No. | Size | Package | Max weight（g/m） | |||
Flat width（mm） | Min Diameter（mm） | Max Diameter（mm） | Nominal Diameter（mm） | |||
QX-SMCA-1/2-5 | 1 | 1 | 2 | 2 | 400m/roll | 3.0 |
QX-SMCA-2/4-5 | 2 | 2 | 4 | 4 | 400m/roll | 4.0 |
QX-SMCA-4/8-5 | 4 | 4 | 8 | 6 | 300m/roll | 8.5 |
QX-SMCA-6/12-5 | 6 | 6 | 12 | 8 | 250m/roll | 11.5 |
QX-SMCA-8/16-5 | 8 | 8 | 16 | 10 | 200m/roll | 14.0 |
QX-SMCA-10/20-5 | 10 | 10 | 20 | 15 | 200m/roll | 17.5 |
QX-SMCA-12/24-5 | 12 | 12 | 24 | 20 | 150m/roll | 22.0 |
QX-SMCA-15/30-5 | 15 | 15 | 30 | 25 | 100m/roll | 32.5 |
QX-SMCA-20/40-5 | 20 | 20 | 40 | 30 | 100m/roll | 39.5 |
QX-SMCA-40/50-5 | 40 | 40 | 50 | 45 | 50m/roll | 49.5 |
QX-SMCA-50/60-5 | 50 | 50 | 60 | 55 | 50m/roll | 58.5 |
Special packages, sizes, and colors can be supplied upon request

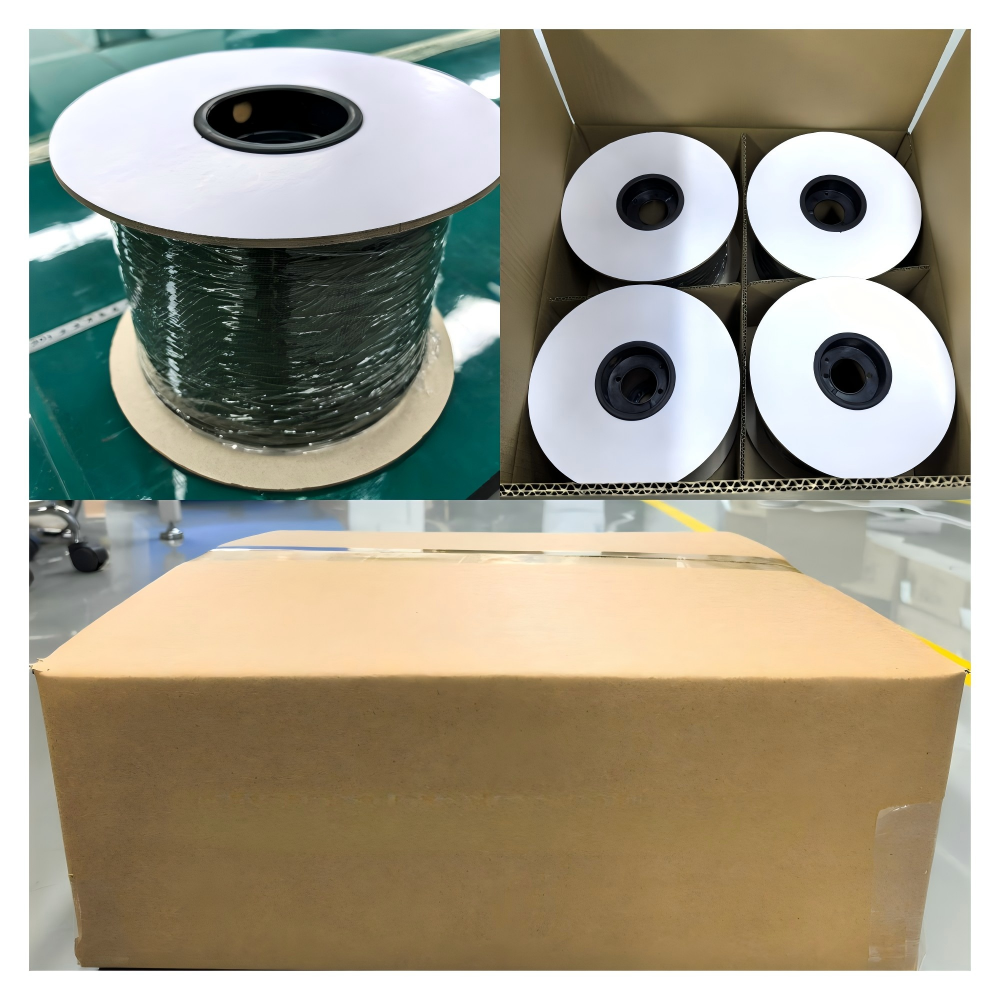

Package Customized
Our factory can provide customers with personalized packaging design customization
services and provide a variety of packaging materials to choose from, such as
1. Boxed
2. PVC bags
3. According to the customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs
FAQs: What You Really Want to Know
How do I pick the right size?
Measure your cable bundle’s maximum diameter, then choose tubing with an initial ID about 10–20% larger. Check the shrink ratio to ensure a snug final fit.
Will it stick permanently?
Standard single-wall tubing does not adhere—but dual-wall variants with an inner adhesive lining form a waterproof seal when you heat them.
Can I use it on irregular shapes?
Yes. Fabric Heat Shrinkable Tube is flexible enough to conform around connectors, sensors, and even small PCBs.
What heat source should I use?
A heat gun set between 120 °C and 200 °C works best. Avoid open flames to prevent scorching or overheating. Different products have different requirements for heating temperature. Please consult us for specific circumstances.
Is it reusable if removed?
Generally, no—once shrunk, the polymer sets in its memory shape. For reusable bundling, consider Spiral Wrap or cable ties instead.
We have various heat shrink tubes that can meet the needs of different industries. If you have any further questions, please feel free to contact us at any time. We will provide you with a professional solution.
